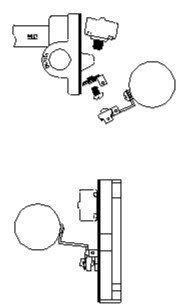

Float & Thermostatic Repair Kits

Tunstall Corporation produces a full line of Float & Thermostatic repair kits with all stainless steel mechanisms and the stainless steel Tunstall Capsule® air vent. Tunstall Corporation is currently working on manufacturing repair kits for F&T traps made by all manufacturers. If you are looking for a manufacturer or trap not listed, please contact us at 800-423-5578

Size Max Press. For ARMSTRONG Trap Model No. Tunstall No. Head
¾" 15 15B3 1RK-15-B3 N/A
1" 15 15B4 2RK-15-B4 N/A
¾" 30 30A3 1RK-30-A3 N/A
1" 30 30A4 2RK-30-A4 N/A
Size Max Press. For Trap Model B&J Kit No. Tunstall No. Head
¾" 15 41T 1FT 1FT-BJ-15 N/A
1" 15 42T 2FT 2FT-BJ-15 N/A
1-¼" 15 43T 3FT 3FT-BJ-15 N/A
1-½" 15 44T 4FT 4FT-BJ-15 N/A
2" 15 457T 5FT 5FT-BJ-15 N/A
¾" 15 51T 6FT 6FT-BJ-15 YES
1" 15 52T 4FT 7FT-BJ-15 YES
¾" 75 653 61FT 61FT-BJ-75 N/A
1" 75 654 62FT 62FT-BJ-75 N/A
1-¼" 75 655 63FT 63FT-BJ-75 N/A
1-½" 75 656 64FT 64FT-BJ-75 N/A
2" 75 657 65FT 65FT-BJ-75 N/A
¾" 125 753 71FT 71FT-BJ-125 N/A
1" 125 754 72FT 72FT-BJ-125 N/A
1-¼" 125 755 73FT 73FT-BJ-125 N/A
1-½" 125 756 74FT 74FT-BJ-125 N/A
¾" 15 FT2015-3 RK2015-3 1FP-BJ-15 YES
1" 15 FT2015-4 RK2015-4 2FP-BJ-15 YES
1-¼" 15 FT2015-5 RK2015-5 3FP-BJ-15 YES
1-½" 15 FT2015-6 RK2015-6 4RK-BJ-15 N/A
2" 15 FT2015-8 RK2015-8 5RK-BJ-15 N/A
¾" 30 FT2030-3 RK2030-3 1FP-BJ-30 YES
1" 30 FT2030-4 RK2030-4 2FP-BJ-30 YES
1-¼" 30 FT2030-5 RK2030-5 3FP-BJ-30 YES
1-½" 30 FT2030-6 RK2030-6 4RK-BJ-30 N/A
2" 30 FT2030-8 RK2030-8 5RK-BJ-30 N/A
¾" 75 FT2075-3 RK2075-3 1FP-BJ-75 YES
1" 75 FT2075-4 RK2075-4 2FP-BJ-75 YES
1-¼" 75 FT2075-5 RK2075-5 3RK-BJ-75 N/A
1-½" 75 FT2075-6 RK2075-6 4RK-BJ-75 N/A
2" 75 FT2075-8 RK2075-8 5RK-BJ-75 N/A
¾" 125 FT2125-3 RK2125-3 1FP-BJ-125 YES
1" 125 FT2125-4 RK2125-4 2FP-BJ-125 YES
1-¼" 125 FT2125-5 RK2125-5 3RK-BJ-125 N/A
1-½" 125 FT2125-6 RK2125-6 4RK-BJ-125 N/A
2" 125 FT2125-8 RK2125-8 5RK-BJ-125 N/A
Size Max Press. For Trap Model B&J Kit No. Tunstall No. Head
½-1" 15 FTI-2015 FTI-15 1-FPI-BJ-15 YES
½-1" 30 FTI-2030 FTI-30 1-FPI-BJ-30 YES
½-1" 75 FTI-2075 FTI-75 1-FPI-BJ-75 YES
½-1" 125 FTI-2125 FTI-125 1-FPI-BJ-125 YES

NOTE: These repair kits are the same for sizes 1/2", 3/4" and 1".

Size Max Press. For DUNHAM BUSH / MEPCO Trap Model Tunstall No. Head
¾" 15 40-215 1FP-DB-15 YES
1" 15 40-415 2FP-DB-15 YES
1-¼" 15 40-515 3RK-DB-15 N/A
1-½" 15 40-715 4RK-DB-15 N/A
¾" 30 30-2A RK-DB-30-2A N/A
1" 30 30-4 RK-DB-30-4 N/A
1-¼" 30 30-5 RK-DB-30-5 N/A
1-½" 30 30-6 RK-DB-30-6 N/A
1-½" 30 30-7 RK-DB-30-7 N/A
1-½" 30 30-7A RK-DB-30-7A N/A
2" 30 30-8A RK-DB-30-8A N/A
Size Max Press. For Erwel Trap Model Tunstall No. Head
¾" 15 F-15 1FP-ER-15 YES
1" 15 F-15 2FP-ER-15 YES
¾" 30 F-30 1FP-ER-30 YES
1" 30 F-30 2FP-ER-30 YES
¾" 75 F-75 1FP-ER-75 YES
1" 75 F-75 2FP-ER-75 YES
¾" 125 F-125 1FP-ER-125 YES
1" 125 F-125 2FP-ER-125 YES
Size Max Press. For HOFFMAN Trap Model Tunstall No. Head
¾" 15 53, 55 1FP-HF-15 YES
1" 15 54, 55 2FP-HF-15 YES
1-¼" 15 56, 55 3FP-HF-15 YES
1-½" 15 57, 55 4FP-HF-15 YES
2" 15 58, 55 5FP-HF-15 YES
¾" 15 FT015H 6FP-HF-15 YES
1" 15 FT015H 7FP-HF-15 YES
1-¼" 15 FT015H 8FP-HF-15 YES
1-½" 15 FT015H 9FP-HF-15 YES
2" 15 FT015H 10FP-HF-15 YES
Size Max Press. For SARCO Trap Model Tunstall No. Head
¾" 15 FT15 1FP-SA-15 Yes
1" 15 FT15 2FP-SA-15 Yes
1-¼" 15 FT15 3FP-SA-15 Yes
1-½" 15 FT15 4RK-SA-15 N/A
2" 15 FT15 5RK-SA-15 N/A
¾" 30 FT30 1FP-SA-30 Yes
1" 30 FT30 2FP-SA-30 Yes
1-¼" 30 FT30 3FP-SA-30 Yes
1-½" 30 FT30 4RK-SA-30 N/A
2" 30 FT30 5RK-SA-30 N/A
¾" 75 FT75 1FP-SA-75 Yes
1" 75 FT75 2FP-SA-75 Yes
1-¼" 75 FT75 3FP-SA-75 Yes
1-½" 75 FT75 4RK-SA-75 N/A
2" 75 FT75 5RK-SA-75 N/A
¾" 125 FT125 1FP-SA-125 Yes
1" 125 FT125 2FP-SA-125 Yes
1-¼" 125 FT125 3FP-SA-125 Yes
1-½" 125 FT125 4RK-SA-125 N/A
2" 125 FT125 5RK-SA-125 N/A
Size Max Press. For SARCO Trap Model No. Tunstall No. Head
½-1" 15 FTI15 1FPI-SA-15 YES
½-1" 30 FTI-30 1FPI-SA-30 YES
½-1" 75 FTI-75 1FPI-SA-75 YES
½-1" 125 FTI-125 1FPI-SA-125 YES
Size Max Press. For STRONG Trap Model No. Tunstall No. Head
¾" 15 11T 1FP-SG-15 YES
1" 15 12T 2FP-SG-15 YES
1-¼" 15 13T 3FP-SG-15 YES
1-½" 15 14T 4FP-SG-15 YES
2" 15 15T 5FP-SG-15 YES
Size Max Press. For TRANE Trap Model No. Tunstall No. Head
¾ & 1" 15 55AL 1RK-TR-55AL N/A
1-¼" 15 66CL 1RK-TR-66CL N/A
Size Max Pres. For TUNSTALL Trap Model Tunstall No. Head
¾" 15 TA-FT3-15 1FP-TA-15 YES
1" 15 TA-FT4-15 2FP-TA-15 YES
1-¼" 15 TA-FT5-15 3FP-TA-15 YES
1-½" 15 TA-FT6-15 4RK-TA-15 N/A
2" 15 TA-FT8-15 5RK-TA-15 N/A
¾" 30 TA-FT3-30 1FP-TA-30 YES
1" 30 TA-FT4-30 2FP-TA-30 YES
1-¼" 30 TA-FT5-30 3FP-TA-30 YES
1-½" 30 TA-FT6-30 4RK-TA-30 N/A
2" 30 TA-FT8-30 5RK-TA-30 N/A
¾" 75 TA-FT3-75 1FP-TA-75 YES
1" 75 TA-FT4-75 2FP-TA-75 YES
1-¼" 75 TA-FT5-75 3RK-TA-75 N/A
1-½" 75 TA-FT6-75 4RK-TA-75 N/A
2" 75 TA-FT8-75 5RK-TA-75 N/A
¾" 125 TA-FT3-125 1FP-TA-125 YES
1" 125 TA-FT4-125 2FP-TA-125 YES
1-¼" 125 TA-FT5-125 3RK-TA-125 N/A
1-½" 125 TA-FT6-125 4RK-TA-125 N/A
2" 125 TA-FT8-125 5RK-TA-125 N/A
¾" 15 TUN-215 TUN-1FP-DB-215 YES
1" 15 TUN-415 TUN-2FP-DB-415 YES
1-¼" 15 TUN-515 TUN-3FP-DB-515 YES
1-½" 15 TUN-715 TUN-4FP-DB-715 YES
2" 15 TUN-6815 TUN-5FP-DB-6815 YES
¾" 30 TUN-230 TUN-1FP-DB-230 YES
1" 30 TUN-430 TUN-2FP-DB-430 YES
1-¼" 30 TUN-530 TUN-3FP-DB-530 YES
1-½" 30 TUN-730 TUN-4FP-DB-730 YES
2" 30 TUN-6830 TUN-5FP-DB-6830 YES
¾" 75 TUN-275 TUN-1FP-DB-275 YES
1" 75 TUN-475 TUN-2FP-DB-475 YES
1-¼" 75 TUN-575 TUN-3FP-DB-575 YES
1-½" 75 TUN-775 TUN-4FP-DB-775 YES
2" 75 TUN-6875 TUN-5FP-DB-6875 YES
¾" 125 TUN-2125 TUN-1FP-DB-2125 YES
1" 125 TUN-4125 TUN-2FP-DB-4125 YES
1-¼" 125 TUN-5125 TUN-3FP-DB-5125 YES
1-½" 125 TUN-7125 TUN-4FP-DB-7125 YES
2" 125 TUN-68125 TUN-5FP-DB-68125 YES

Size Max Pres. For TUNSTALL HIGH CAPACITY Trap Model Tunstall No. Head
1-½" 15 TUN-8715 TUN-4FP-DB-8715 YES
2" 15 TUN-8815 TUN-5FP-DB-8815 YES
1-½" 30 TUN-8730 TUN-4FP-DB-8730 YES
2" 30 TUN-8830 TUN-5FP-DB-8830 YES
1-½" 75 TUN-8775 TUN-4FP-DB-8775 YES
2" 75 TUN-8875 TUN-5FP-DB-8875 YES
1-½" 125 TUN-87125 TUN-4FP-DB-87125 YES
2" 125 TUN-88125 TUN-5FP-DB-88125 YES
Size Max Press. For WATSON MCDANIEL Tunstall No. Head
¾" 15 FT-3 1FP-WM-15 YES
1" 15 FT-4 2FP-WM-15 YES
1-¼" 15 FT-6 3FP-WM-15 YES
1-½" 15 FT-7 4FP-WM-15 YES
2" 15 FT-8 5FP-WM-15 YES
Size Max Press. For WARREN WEBSTER Tunstall No. Head
¾" 15 273 RK-WW-273 N/A
1" 15 274 RK-WW-274 N/A
¾-1" 15 Air Vent Only For 273 & 274 TCWW-2545 N/A
